CHETRA MPG
Moldable polymer seal
2-component sealing material polymer (A) and hardener (B) for the production of flat gaskets of all shapes and sizes directly on the object to be sealed
MPG is a high quality system for the production of flat gaskets for most industrial applications
Flange unevenness up to 7 mm can be compensated: MPG is dimensionally stable, does not shrink or warp, does not slip
easy assembly (see illustration) and disassembly – can be pulled off easily without jamming, protects flanges
very economical in use: no waste, no cutting and punching
Resistant to water, oils, hydraulic fluids, solvents, chemicals etc. (except concentrated acids/alkalis; (see pH range)
Spezifikationen:

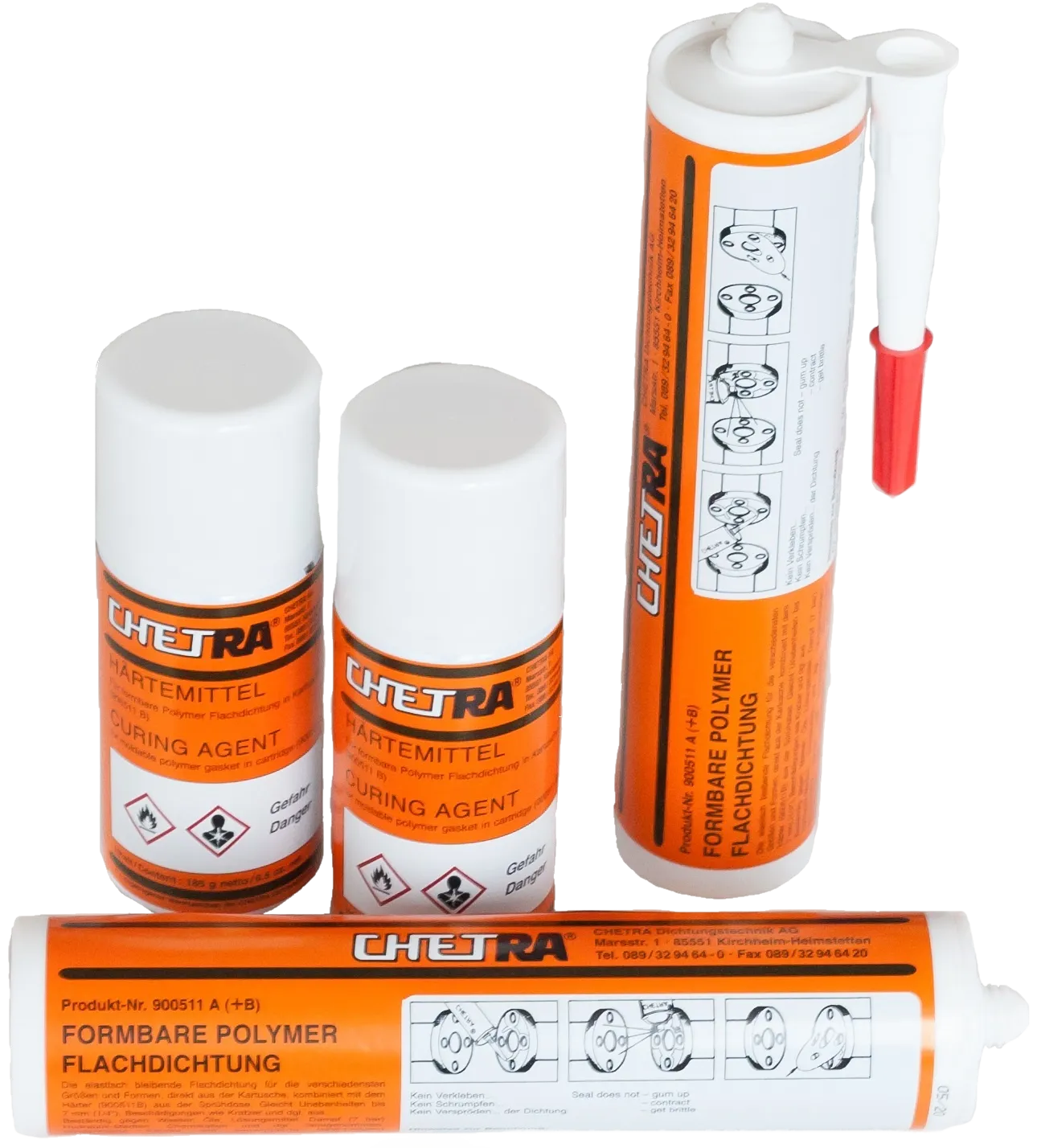

- Product no. 900511
- 1 box
- 2x comp. A (cartridge) 400 ml
- 2x comp. B (hardener) 185 g
Technische Spezifikationen
p-range: vacuum – 220 bar (see below)
pmax: (after full curing 2-3h): 220 bar (depending on mechanical conditions and the temperature to be bridged sealing gap)
pmax (immediately after application): 1 bar; pmax (steam): 7 bar
t: -50° C to +260° C; pH: 2-11
