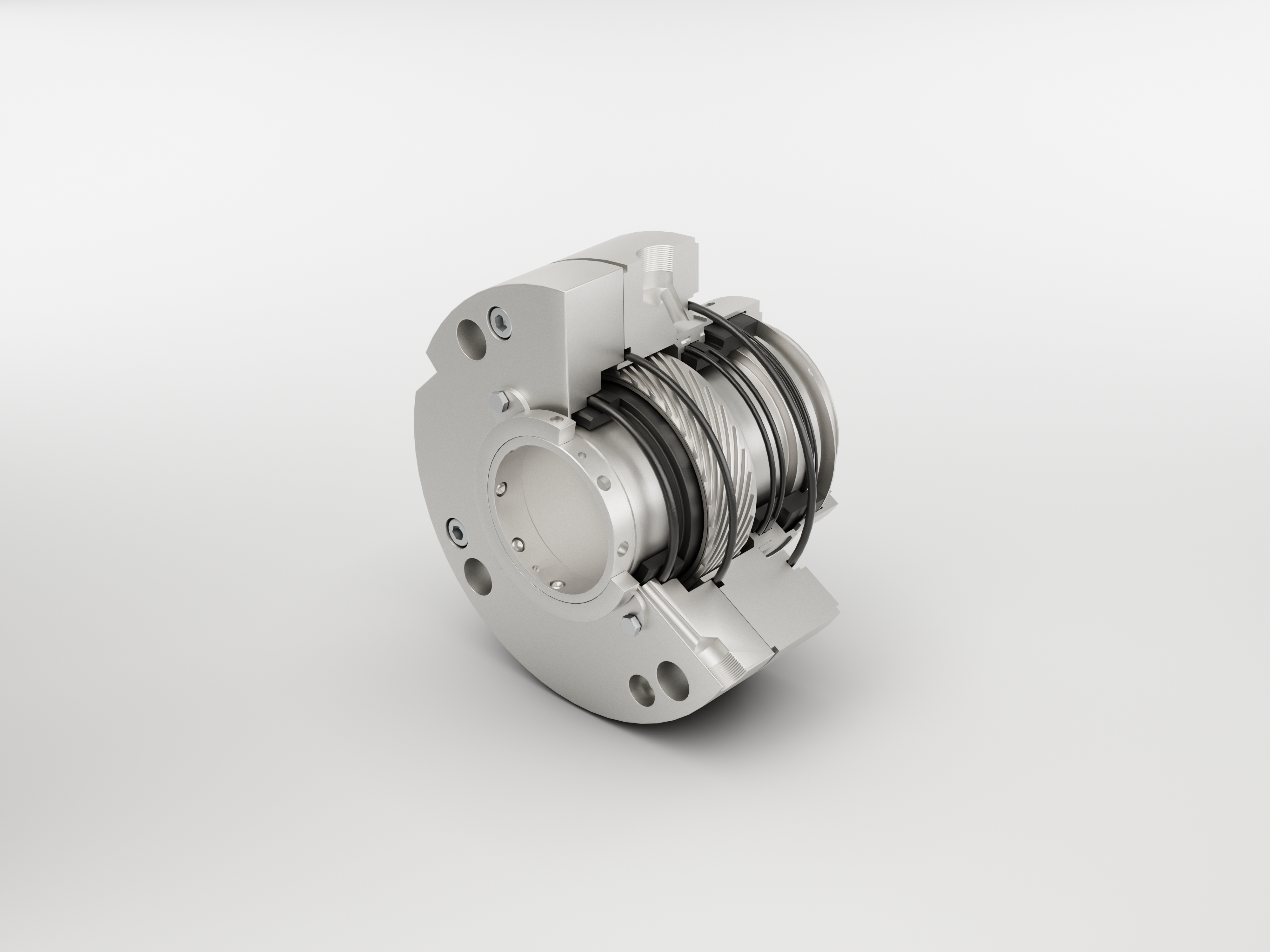

Mechanical Seal Applications in Refineries: Overcoming Critical Challenges

Refineries operate under some of the most demanding conditions in industrial processing. Mechanical seals play a crucial role in maintaining operational integrity, preventing leaks, and ensuring safety across numerous applications. Understanding the unique challenges these seals face is essential for engineers and maintenance professionals tasked with maximizing uptime and reliability.

High-Temperature Challenges

Refinery processes frequently involve extreme temperatures that can compromise seal integrity. Crude distillation units, catalytic crackers, and hydroprocessing equipment routinely operate at temperatures exceeding 300°C (572°F), creating significant thermal stress on sealing components.

• Material degradation: Elastomers lose elasticity and can harden or crack at elevated temperatures

• Thermal expansion: Differential expansion between seal components can lead to face separation or excessive loading

• Coking and deposits: High temperatures can cause product carbonization on seal faces, leading to premature failure

Engineers must select seal designs with appropriate cooling systems, high-temperature materials like carbon graphite or silicon carbide faces, and heat-resistant secondary sealing elements such as Kalrez or graphite.

Corrosive Media and Chemical Compatibility

Refineries process a wide range of corrosive substances including sulfuric acid, hydrofluoric acid, caustic solutions, and hydrocarbon streams containing hydrogen sulfide (H₂S). These aggressive chemicals attack conventional seal materials, causing rapid degradation.

Key Corrosion Considerations

• Material selection: Hastelloy, duplex stainless steels, and specialized alloys resist chemical attack better than standard materials

• Face material pairing: Silicon carbide vs. silicon carbide or tungsten carbide combinations offer superior chemical resistance

• Barrier fluid systems: API Plan 53 or 54 systems isolate seals from corrosive process fluids using pressurized barrier fluids

Safety and Environmental Requirements

Refineries face stringent safety regulations and environmental standards. Mechanical seal failures can result in hazardous material releases, fires, explosions, or environmental contamination. This makes seal reliability not just an operational concern, but a critical safety imperative.

• Fugitive emissions: Dual mechanical seals with barrier systems minimize VOC emissions and meet EPA regulations

• API 682 compliance: Industry-standard seal designs ensure reliable performance in hazardous service applications

• Monitoring systems: Real-time seal condition monitoring detects anomalies before catastrophic failures occur

• Redundancy: Tandem seal arrangements provide backup protection in critical applications

Conclusion

Mechanical seals in refinery applications face a unique combination of extreme temperatures, corrosive chemicals, and stringent safety requirements. Success requires careful material selection, appropriate seal design configurations, and comprehensive support systems. Engineers and maintenance professionals must consider these challenges holistically, balancing performance, reliability, and compliance to ensure safe, efficient refinery operations. Proper seal selection and maintenance not only prevent costly downtime but also protect personnel and the environment from hazardous releases.
