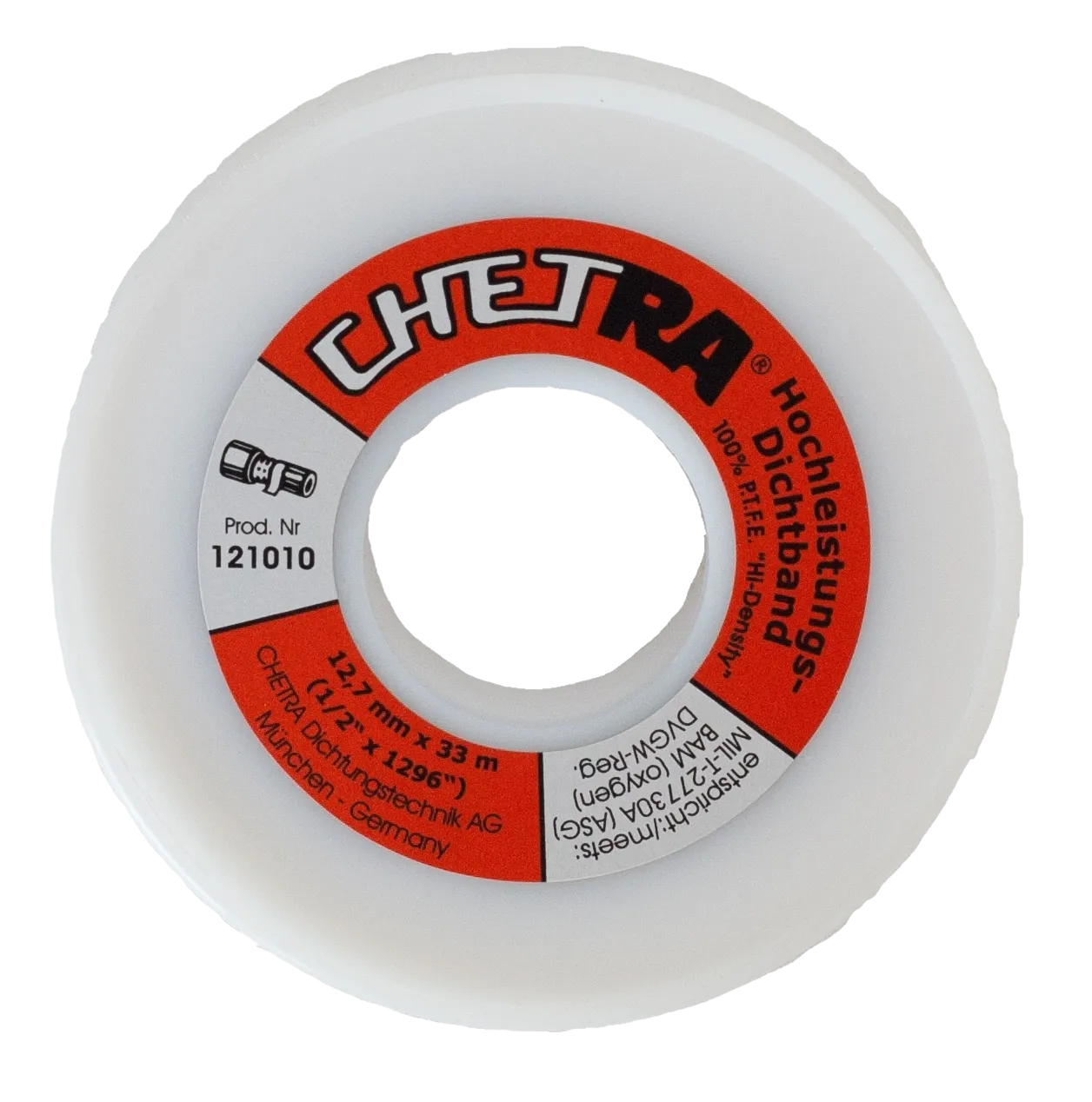

HI-DENSITY
High Performance Sealing Tape
100% pure, virgin PTFE thread sealing tape for practically all threaded connections, fittings, pipes/fittings
universally applicable, especially dense thread sealing tape of approx. 0.1 mm thickness
For drinking water, hot water, salt water, air, steam, oil, acids and alkalis, natural gas, butane, propane, frigen, chlorine, gaseous oxygen, ammonia, fuels, solvents and many more.
Applications in piping systems in chemical, gas and water piping, including drinking water, hydraulic hoses, pneumatics, mechanical engineering, agriculture, etc.
Specifications:
- Prod. no.
- 121007 6,4mm x 13m
- 121009 12,7mm x 10m DVGW-zertifiziert (NV-5143AU0295)
- 121010 12,7mm x 33m
- 12 rolls per box
- Dimensions: 12,7mm x 10m (width x length; other dimensions on request)
Approvals & Certifications
DIN-DVGW type examination certificate NV-5143AU0295;
Kl.GRp; according to DIN 30660, DIN EN 751-3 and BGA KTW
BAM II-898/2006 (for gaseous oxygen max. 50 bar/60° C) complies with FDA; MIL-T-27730A
Technical Specifications
pmax: 220 bar (depending on installation conditions)
pmax (oxygen): 100 bar
pmax (gas supply): 16 bar
t: -240° C to +260° C
tmax (oxygen): 60° C
pH: 0-14 (except nitric acid, liquid gas in the gas phase and liquid oxygen)
